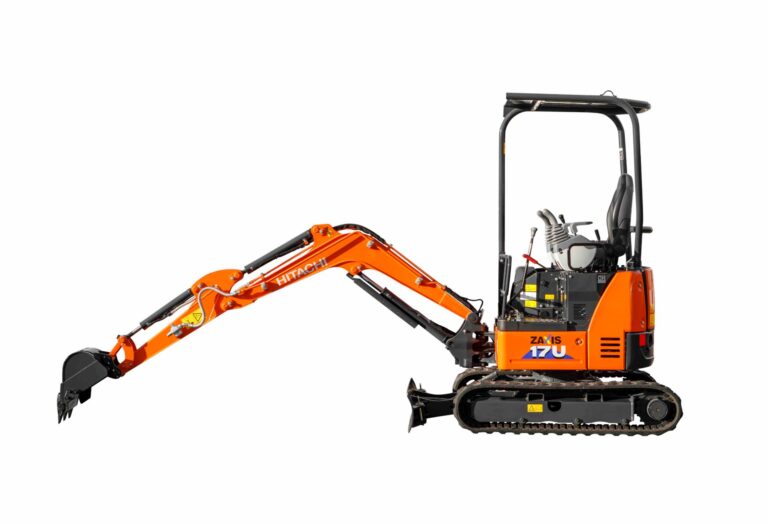

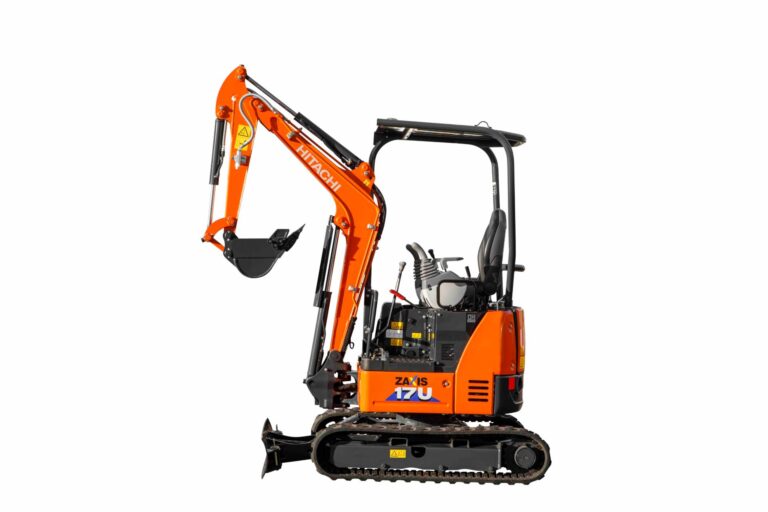

“Hitachi” Mini Excavator ZX17U‑6 / ZX19U‑6

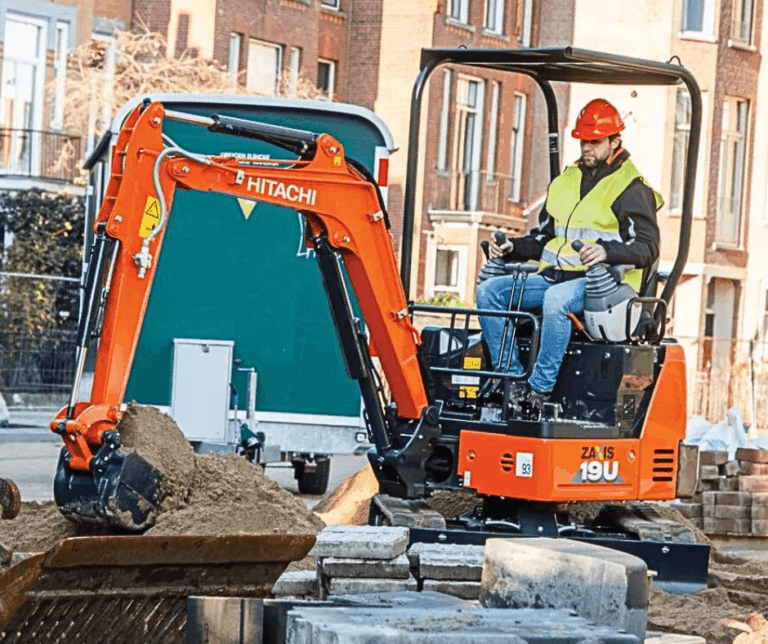

Efficient performance. The Stage V-compliant engine and Hitachi hydraulic system ensure the ZX17U-6 and ZX19U-6 work productively and efficiently on any job site. They are exceptionally versatile for working in small spaces, thanks to their compact size, short-tail swing and adjustable tracks.

Technical Specifications

Engine Rated Power
11.5 kW (ISO14396)
Backhoe Bucket ISO Heaped
0.02 – 0.05 m³
Max. digging depth
2190 – 2390 mm
Bucket digging force ISO
16.0 kN
Minimum lifting capacity
1760 kg
Maximum lifting capacity
1880 kg

Looking for effective technology?

Get a personalized quote and find out how much you can save. Enter your email address and we will send you a personalized solution.

Thank you, request sent!

High productivity. The ZX17U-6 and ZX19U-6 deliver high levels of productivity, quick cycle time and an efficient hydraulic system.

Outstanding versatility. The crawler tracks can be retracted or widened – depending on the requirements of the job site – from 980mm, for working in small spaces or being loaded on to a truck, to 1,280mm for greater stability

Built to last. Durable features of the ZX17U-6 and ZX19U-6 – such as a reinforced D-frame, V-shaped cylinder cover and boom cylinder guard – ensure a reliable performance, helping you to get the job done on time and on budget.
